Alfa Laval SRU Rotary Lobe Pump
↑ meta.title
Facetsentities.csv
Metadata
type: product
slug: /products/alfa-laval-sru
metaTitle: Alfa Laval SRU Rotary Lobe Pump
title: Alfa Laval SRU Rotary Lobe Pump
navTitle: Alfa Laval SRU
metaDescription: The Alfa Laval SRU rotary lobe pump gently transfers viscous, shear-sensitive fluids to 106 m³/h across food, dairy, pharmaceutical and chemical duties.Content blocks
content.introThe Alfa Laval SRU is a hygienic rotary lobe pump: a positive displacement pump built for gentle, low-shear, low-pulsation transfer of viscous and shear-sensitive fluids. It suits demanding hygienic duties in food, dairy, pharmaceutical and chemical processing, and handles flows up to 106 m³/h. Channel Pumps supplies and sizes the SRU to your duty.
content.heroimage slotasset: sru-primary.png
alt: Alfa Laval SRU hygienic rotary lobe pump

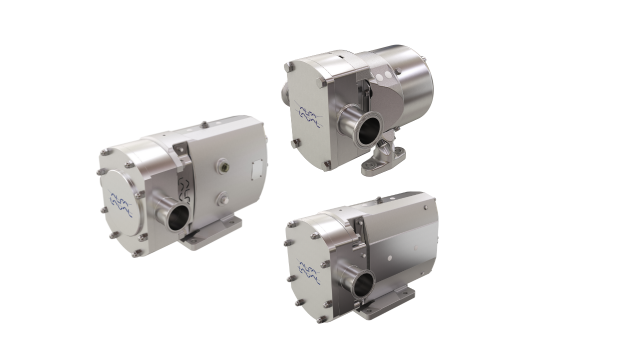

content.gallerycontent.gallery.headingThe SRU rotary lobe pump range
content.gallery.images[]1 itemcontent.gallery.images[0]image slotasset: sru-range.png
alt: The Alfa Laval SRU range of hygienic rotary lobe pumps
content.key_features[]5 itemscontent.key_features[0]content.key_features[0].titleGentle, low-shear handling
content.key_features[0].descriptionProtects product quality when moving shear-sensitive fluids.
content.key_features[1]content.key_features[1].titleConsistent, low-pulsation flow
content.key_features[1].descriptionSteady delivery that supports process uptime.
content.key_features[2]content.key_features[2].titleHygienic design
content.key_features[2].descriptionSupports validated cleaning, for product safety.
content.key_features[3]content.key_features[3].titleProcess flexibility
content.key_features[3].descriptionHandles a range of viscosities and products on one pump platform.
content.key_features[4]content.key_features[4].titleLow-maintenance build
content.key_features[4].descriptionRobust gearbox, heavy-duty shafts, torque-locking assemblies and taper roller bearings.
content.bodyThe SRU is Alfa Laval's hygienic rotary lobe pump: a positive displacement design for processes where product quality matters as much as throughput. Its low-shear, low-pulsation action moves viscous and shear-sensitive fluids gently, so it fits food, dairy, beverage, home and personal care, biotechnology and pharmaceutical duties. Channel Pumps supplies the SRU and sizes it to your duty point. We match the pump head, connections and configuration to your flow, differential pressure, medium and hygiene requirement.
content.how_it_worksA rotary lobe pump moves fluid by positive displacement. Two high-precision rotors turn in mesh inside the pump head, carrying fluid around the casing from inlet to outlet in a gentle, low-pulsation action. Because the fluid isn't forced through a tight clearance at speed, shear stays low. That is what protects delicate products. The SRU adds a front cover seal with defined compression, a rotor nut retention design, and a drainable pump head to support cleaning. It is built to 3-A Sanitary and FDA hygienic standards, and is available to ATEX requirements for explosive atmospheres.
content.specifications[]5 itemscontent.specifications[0]content.specifications[0].labelFlow rate
content.specifications[0].valueup to 106 m³/h
content.specifications[0].noterange maximum
content.specifications[1]content.specifications[1].labelDifferential pressure
content.specifications[1].valueup to 20 bar
content.specifications[1].noterange maximum
content.specifications[2]content.specifications[2].labelTemperature
content.specifications[2].valueup to 200 °C
content.specifications[3]content.specifications[3].labelPump head displacements
content.specifications[3].value12 options
content.specifications[4]content.specifications[4].labelHygienic standards
content.specifications[4].value3-A Sanitary and FDA; available to ATEX for hazardous areas
content.quote_ctaChannel Pumps sizes and supplies the SRU for your process. Tell us your flow, differential pressure, medium and its viscosity, temperature, and any hygiene or hazardous-area requirement, and we'll specify the right pump head and configuration. Request a quote.
content.documents[]3 itemscontent.documents[0]documenttype: leafletsru-product-leaflet.pdf
Alfa Laval's SRU leaflet: range overview, features and specification data.
content.documents[1]documenttype: manualsru-instruction-manual.pdf
Installation, operation and maintenance manual for the SRU range.
content.documents[2]documenttype: manualsru-atex-addendum.pdf
Addendum covering SRU use in potentially explosive (ATEX) atmospheres.
content.related_productscontent.related_products.headingOther rotary lobe pumps
content.related_products.sourceautogenerated:query
content.related_products.querycontent.related_products.query.clusterrotary-lobe-pump
content.related_products.query.limit4content.related_products.query.orderpriority
content.faq[]5 itemscontent.faq[0]content.faq[0].questionWhat is the Alfa Laval SRU used for?
content.faq[0].answerThe SRU is a hygienic rotary lobe pump for gentle, low-shear transfer of viscous and shear-sensitive fluids. It's used in food, dairy, beverage, home and personal care, biotechnology and pharmaceutical processing.
content.faq[1]content.faq[1].questionWhat flow and pressure can the SRU handle?
content.faq[1].answerThe SRU handles flows up to 106 m³/h and differential pressure up to 20 bar, with 12 pump head displacements to match a duty. Confirm your configuration with Channel Pumps.
content.faq[2]content.faq[2].questionDoes the SRU meet hygienic standards?
content.faq[2].answerThe SRU is built to 3-A Sanitary and FDA hygienic standards, with a drainable pump head that supports validated cleaning.
content.faq[3]content.faq[3].questionIs the SRU available for hazardous areas?
content.faq[3].answerYes — the SRU is available to ATEX requirements for explosive atmospheres. Specify your zone and the medium when you enquire.
content.faq[4]content.faq[4].questionCan Channel Pumps size an SRU for my duty?
content.faq[4].answerYes. Channel Pumps sizes and supplies the SRU — give us your flow, pressure, medium and any hygiene or hazard requirement, and we'll specify the configuration.
content.citations[]1 itemcontent.citations[0]content.citations[0].sourceAlfa Laval — SRU rotary lobe pump
content.citations[0].urlhttps://www.alfalaval.co.uk/products/fluid-handling/pumps/rotary-lobe-pumps/sru/
